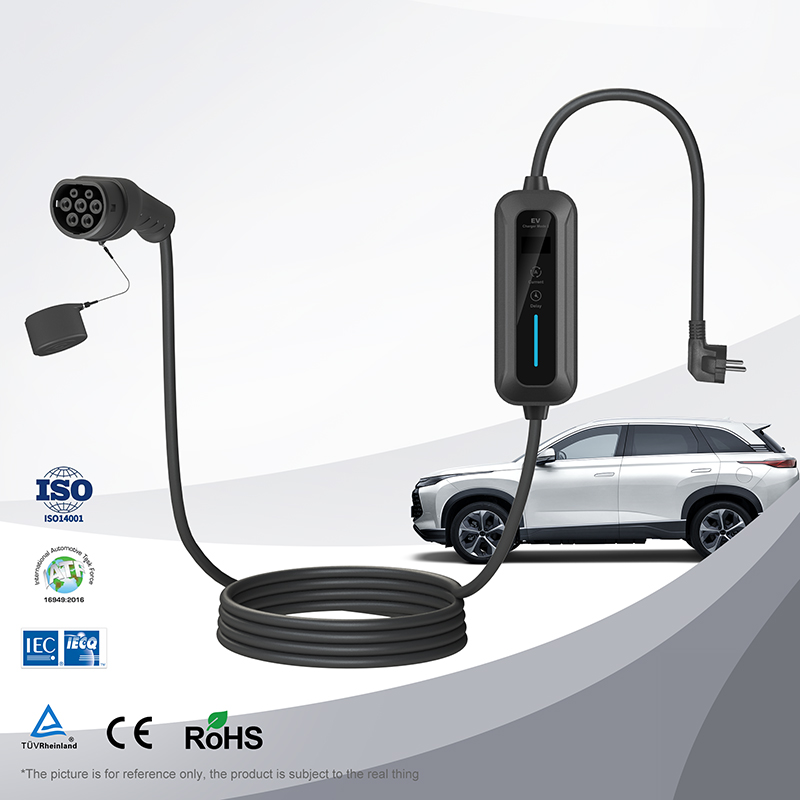

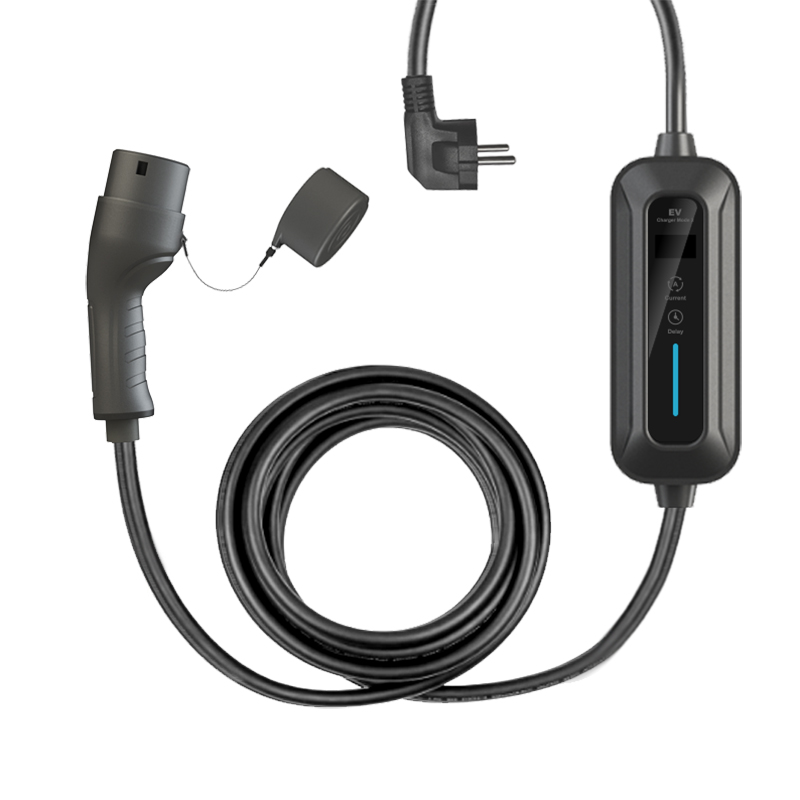

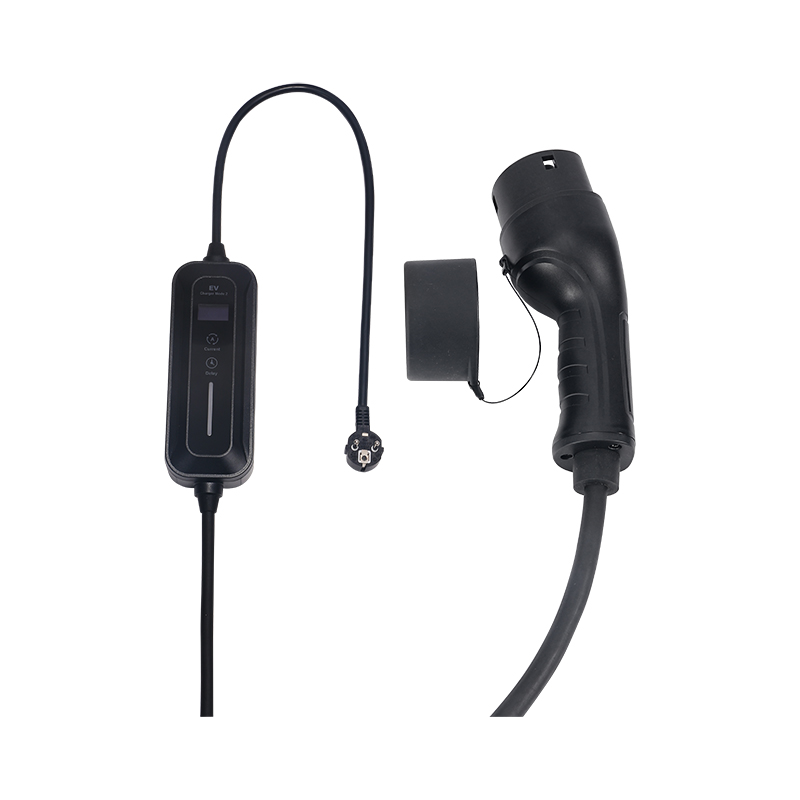

16A Mode 2 EV Charger (Adjustable or Fixed Current)
For the wall side plug, we can install the wall side plug according different countries situation:
AUMarket---------AU/NZ Plug
UK Market--------3Pin UK Plug
EU Market--------EU Schuko Plug
Blue CEE Plug
Red CEE Plug etc
North American Market
--------NEMA 5-15, 6-15, 6-20
NEMA 10-30, 6-50, 10-50
NEMA 14-30, 14-50 Plug etc
Other Market----- Japan Plug, South Africa Plug, Thailand Plug, lsrael Plug, Demark Plug etc.
TUV, CE Certificate
Mechanical Properties
Multiple current options: 6A / 8A / 10A / 13A / 16A;
Multiple appointment times optional: 1H / 2H / 4H / 8H;
Mechanical Life no-load plug in/pull out>10000 times;
Excellent protection performance.protection grade IP67;
Reliability of materials, antiflaming, pressure-resistant, abrasion resistance, impact resistance and high oil.
Multiple colors available: Black,Yellow, Green, Blue etc;
Shell Material: ABS and PC Flame Retardant Grade UL94 V-0;
(10Meter Max) The length of the cable can be customized.
Electrical Performance
Item | Mode 2 EV Charger ( Adjustable or Fixed Current ) | |
Standard | IEC 62752, IEC 61851 | |
Product Model | BRD-EVSE-PA16S | BRD-EVSE-PE16S |
Rated Current | 6A / 8A / 10A / 13A / 16A ( Adjustable or Fixed Current ) | |
Rated Power | Max 3.6KW | |
Appointment time | 1H / 2H / 4H / 8H(Adjustable) | |
Operation Voltage | AC 110V-250 V | |
Leakage Protection | Type A RCD or Type A RCD+DC 6mA (Optional ) | |
Withstand Voltage | 2000V | |
Mechanical Life | No-Load Plug in / Pull Out >10000 Times | |
Operating Temperature | -30°℃~+50℃ | |
Waterproof Degree | IP65/ Box IP67 | |
EV Control Box Size | 220mm (L) X 85mm (W) X 54mm (H) | |
LCD Display | Temperature, Charging Time, Actual Current, Actual Voltage, Actual Charging Power, Delay Time | |
Protection | Leakage Current Protection; Over Current Protection; Over Voltage Protection; Under Voltage Protection; Over Temperature Protection; Temperature Protection; Short Circuit Protection; Surge Protection; Overload Protection. | |
